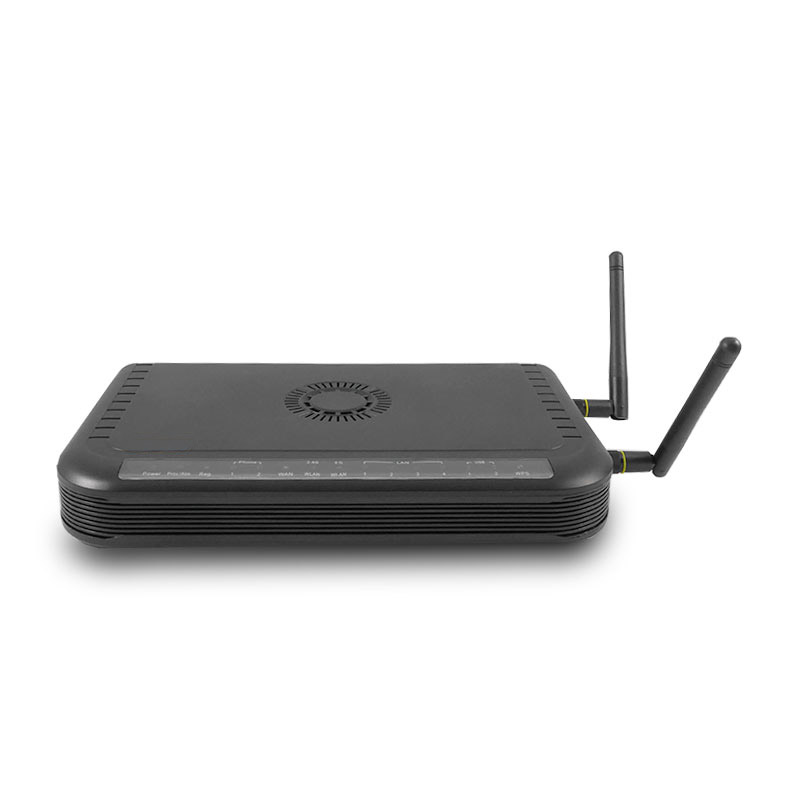

Octtel Luke IP-PBX Mini Voice Softswitch Gateway is a comprehensive voice access switching device designed for small and medium-sized enterprises, hotels, farmhouses, residential properties, security, restaurants, entertainment venues, etc. Through Luke IP-PBX, you can establish extension dialing, switchboard access, conference communication, voice answering and other services in the voice phone.

In the past, the price of the voice switching system has made many small and medium-sized enterprises unable to afford, and the open voice softswitch has the influence of complicated configuration and poor stability. Currently, with the Octtel Luke IP-PBX device, enterprise-class voice access exchange services can be established with limited budget.

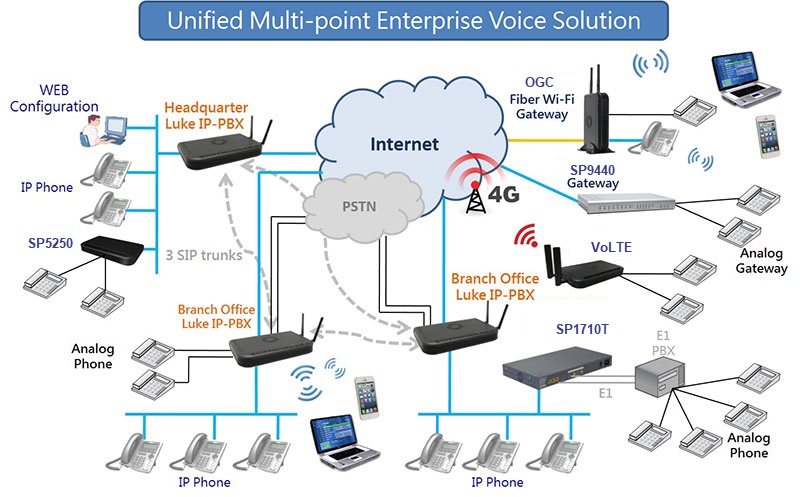

Octtel Luke IP-PBX micro voice softswitch relay gateway can be matched with Octtel other series VoIP SP1700, SP5250, SP9440 series voice gateway, up to 50 channels of voice registration standby, 12-way voice simultaneous call, WiFi wireless network access, excellent and simple The WEB UI configuration allows users to quickly and conveniently enjoy the high-quality voice services provided by the Luck IP-PBX.

報價  型錄



    • 50 SIP Extensions
    • 12 Concurrent Calls
    • Auto-attendant
    • 2 FXO trunks
    • 2 FXS extensions
    • 3 SIP trunks
  • Support Standards
    • SIP RFC 3261 Compliance
    • Voice Codecs: G.711 a/ μ, G.729A and G.723.1, G.726-32K, GSM
    • T.38, T.30 FAX support
    • Video Codec Pass-Thru: H.263, H.264
    • MIME, SMIME authentication
    • RTP, sRTP
    • Internet: DHCP, Static IP, PPPoE, PPtP
    • Network: NAT & DHCP server
    Call Features
    • Call Hold, Call Waiting, Call Parking, Call Pickup
    • Blind Call Transfer, Attended Call Transfer
    • Call Forward on Busy, No Answer or Always
    • Do Not Disturb
    • Speed Dial
    • Outgoing & Incoming call blocking
    • Hot Line, Warm Line
    • Ring Groups & Hunt Groups
    • Direct Inward Dialing (DID)
    • Call Queuing
    • 3-way calling
    • Call Logging, Call Reporting
    • Busy Lamp Field (BLF) per RFC4235
    Voice Mail
    • Personal greeting
    • Multi-Languages support
    • MWI notification (option)
    • Email notification
    • Redirect to PBX /SIP/ PSTN
    Auto Attendant
    • Web-Based Auto Attendant Flow Editor
    • Scheduled Special Announcement
    • Holidays Working Time Support
    • Multiple Language Support
    Call Conference
    • Conference Calling
    • Meeting Rooms
    • Up-to 6 Participants per Room
    • Web-Based management
    • User and administration configuration mode
    • NTP synchronization
    • System event Syslog
    • Scheduled Backup
    • Firewall and DMZ
    • Access control
    • USB device Restore and Backup configuration
    • VXML Based IVR
    • Two WAN ports, for connecting to Internet
    • One LAN port for connecting to Private Network
    • One USB port
    • 4 RJ-11 ports, 2 for FXS and 2 for FXO
    • IEEE802.11n, 2T2R
    • Dimension: W 22.2x H 3.3x D 14.5 cm (excl. Stand)
    • Weight: 450g (without packing)
    • One unit packing dimension: 55 x 37.5 17.5 CM
    • 0°C~45°C,
    • 10%~90% relative humidity, non-condensing
  • 應用
